Compact Air Compression System
- 99% Satisfaction Rate
- All Equipments Included
- Quite & Compact
Compressor, Dryer, Tank, and Filters – All Included!
Comprehensive Efficiency with Enduring Dependability
Compact, Easy to Install

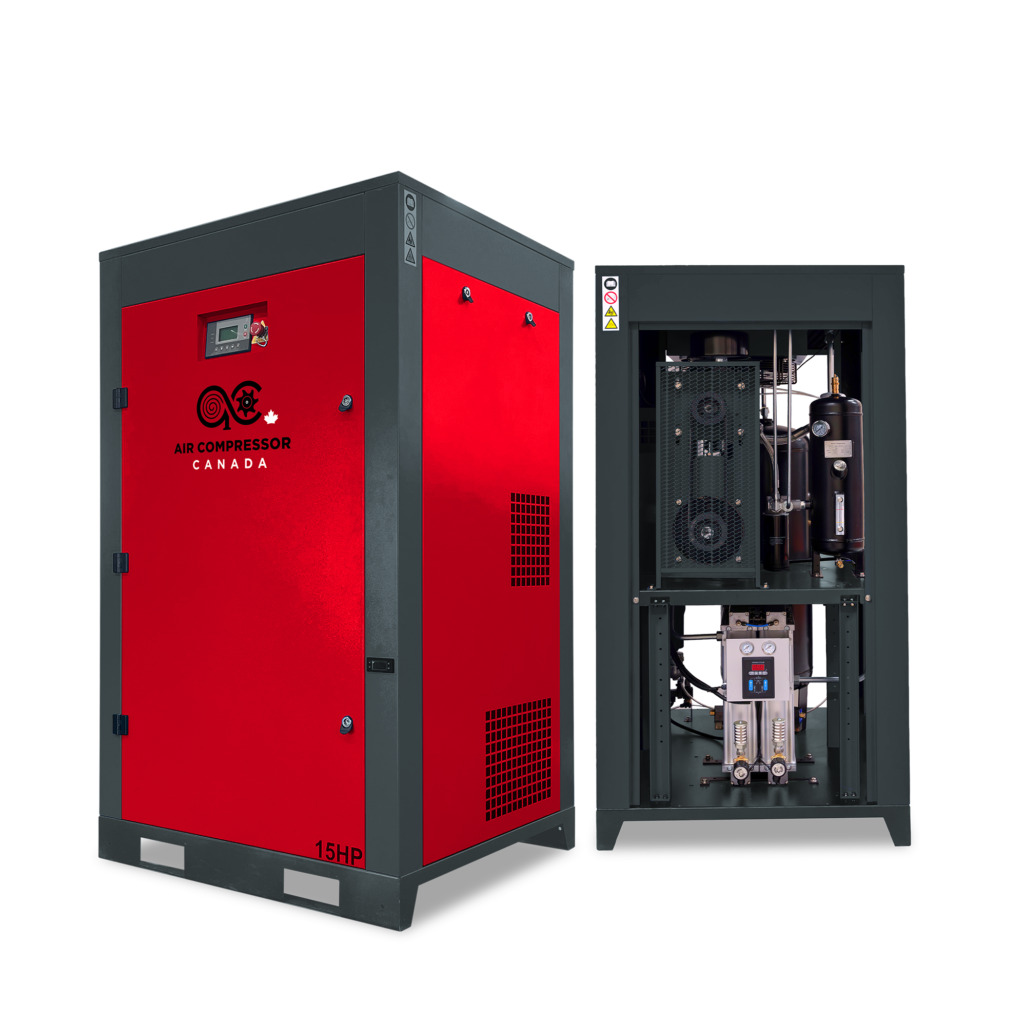

The ACC Air Centers represent an optimal solution for enterprises requiring a compact and efficient compressed air system. These comprehensive units seamlessly integrate a compressor, air dryer, tank, and inline filters into a single, operationally ready system, thereby removing the necessity for multiple components and intricate piping. With a straightforward design, the Air Centers facilitates rapid setup and reduces installation costs. This all-in-one air compressor enhances operational efficiency, allowing businesses to prioritize productivity over equipment management.
Compressed Air Centers-with Refrigerated Air Dryer

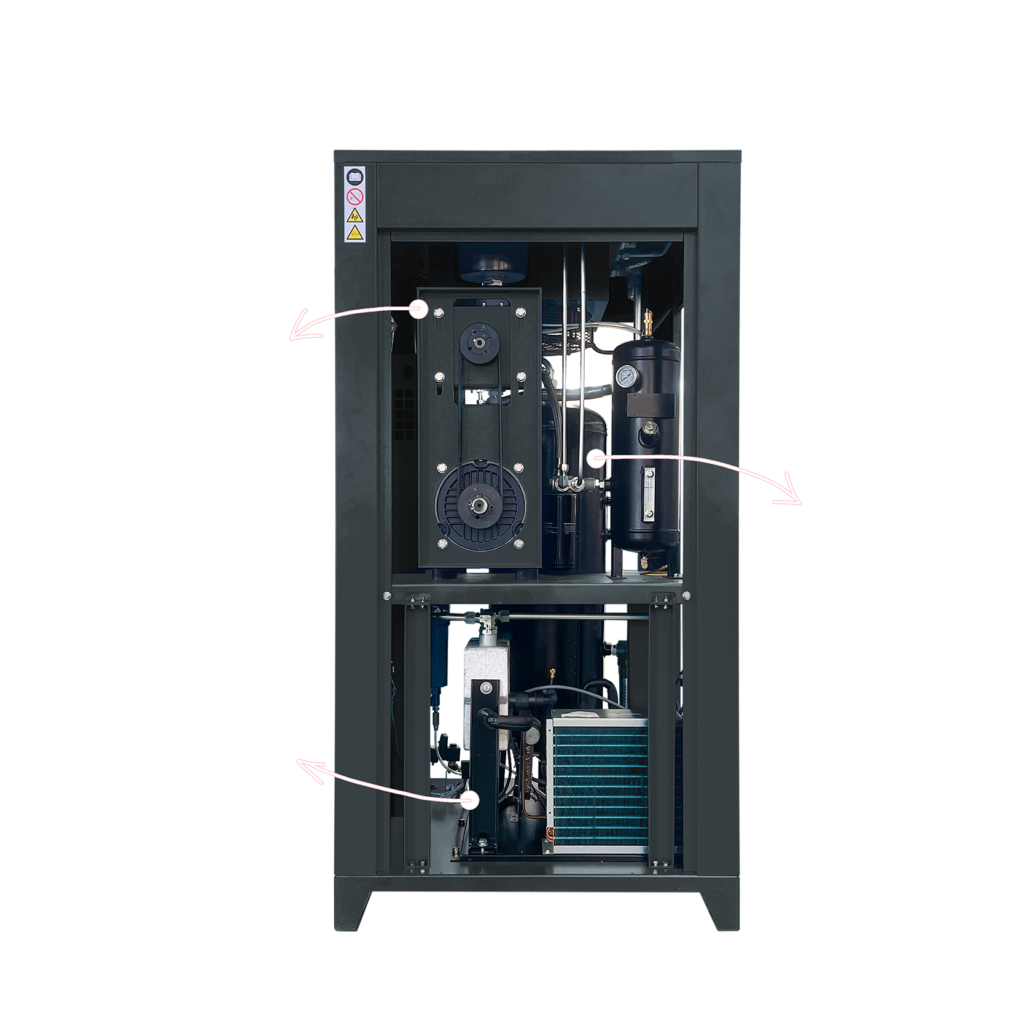

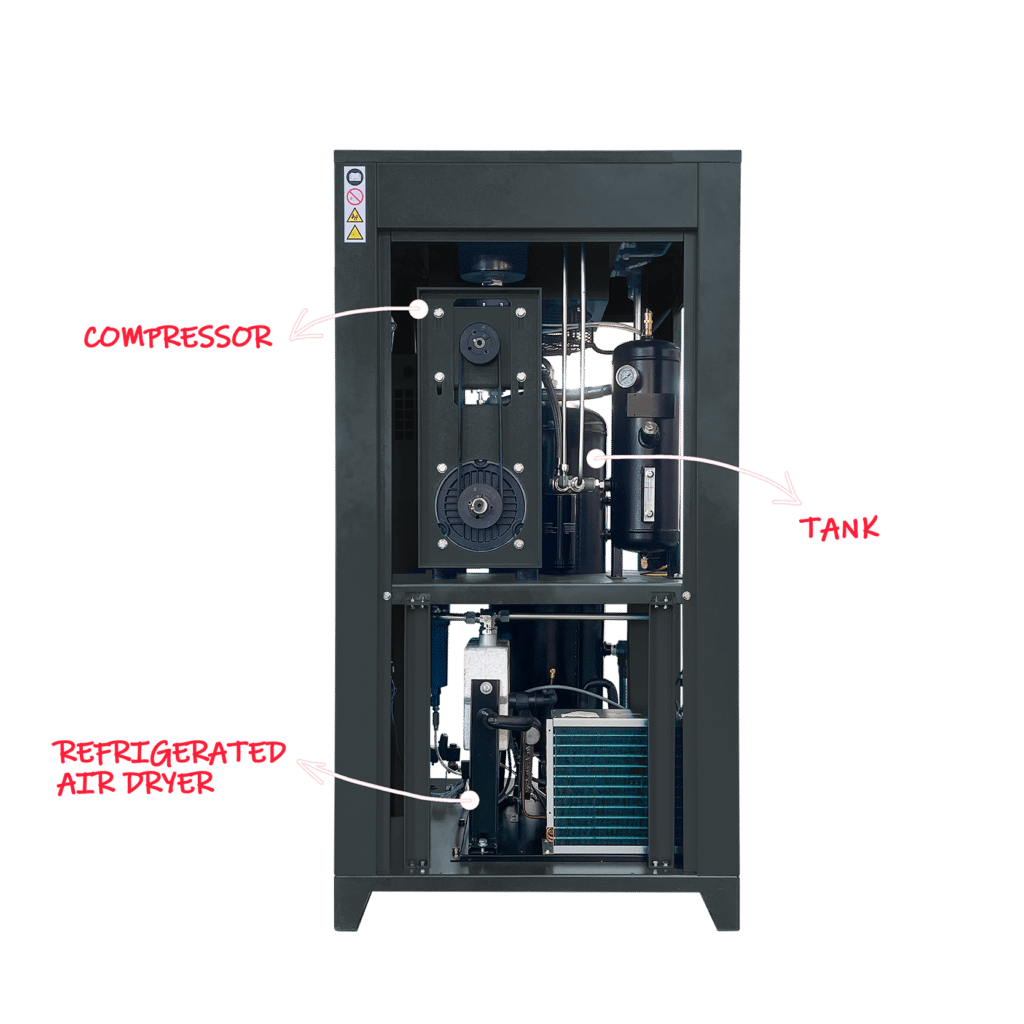

Compressed Air Centers‑with Refrigerated Air Dryer deliver a complete, plug‑and‑play compressed air solution in a single, compact package. Each system combines a high‑efficiency rotary screw compressor, integrated refrigerated air dryer, air tank, pre‑ and post‑inline filtration, and automatic drains for the tank, filters, and dryer—all engineered into one quiet, ready‑to‑run unit. With only one power connection and a single air outlet required, installation is fast and simple. Available in fixed‑speed or VSD/VFD inverter‑driven models, these centers provide clean, dry air at a consistent dew point for general industrial applications while minimizing noise, footprint, and total cost of ownership.
Fixed Speed (Refrigerated Air Dryer)
| Model | FAD @ 100 PSI (CFM) | FAD @ 150 PSI (CFM) | FAD @ 200 PSI (CFM) | Motor (HP) | Voltages Available | Tank (Gallon) | Length (in) | Width (in) | Height (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| ACC5TD/X | 21 | 17 | 11 | 5 |
208-230V 1Ph 480V 1Ph 600V 1Ph |
26 | 33½ | 37½ | 61 | 627 |
| ACC7TD/X | 29 | 23 | 18 | 7 | 26 | 33½ | 37½ | 61 | 645 | |
| ACC10TD/X | 43 | 35 | 21 | 10 | 26 | 33½ | 37½ | 61 | 660 | |
| ACC15TD/X | 61 | 50 | 36 | 15 | 26 | 37½ | 42½ | 71½ | 818 | |
| ACC20TD/X | 86 | 71 | 57 | 20 | 26 | 37½ | 42½ | 71½ | 858 | |
| ACC25TD/X | 111 | 96 | 79 | 25 | 72 | 56¾ | 39½ | 86½ | 1287 | |
| ACC30TD/X | 129 | 114 | 96 | 30 | 72 | 56¾ | 39½ | 86½ | 1353 |
Variable Speed VFD/VSD (Refrigerated Air Dryer)
| Model | FAD @ 100 PSI (CFM) | FAD @ 150 PSI (CFM) | FAD @ 200 PSI (CFM) | Motor (HP) | Voltages Available | Tank (Gallon) | Length (in) | Width (in) | Height (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| ACC5TD/D | 21 | 17 | 11 | 5 |
208-230V 1-3Ph 480V 3Ph 600V 3Ph |
26 | 33½ | 37½ | 61 | 627 |
| ACC7TD/D | 29 | 23 | 18 | 7 | 26 | 33½ | 37½ | 61 | 645 | |
| ACC10TD/D | 43 | 35 | 21 | 10 | 26 | 33½ | 37½ | 61 | 660 | |
| ACC15TD/D | 61 | 50 | 36 | 15 | 26 | 37½ | 42½ | 71½ | 818 | |
| ACC20TD/D | 86 | 71 | 57 | 20 | 26 | 37½ | 42½ | 71½ | 858 | |
| ACC25TD/D | 111 | 96 | 79 | 25 | 72 | 56¾ | 39½ | 86½ | 1287 | |
| ACC30TD/D | 129 | 114 | 96 | 30 | 72 | 56¾ | 39½ | 86½ | 1353 |
Compressed Air Centers-with Modular Desiccant Air Dryer

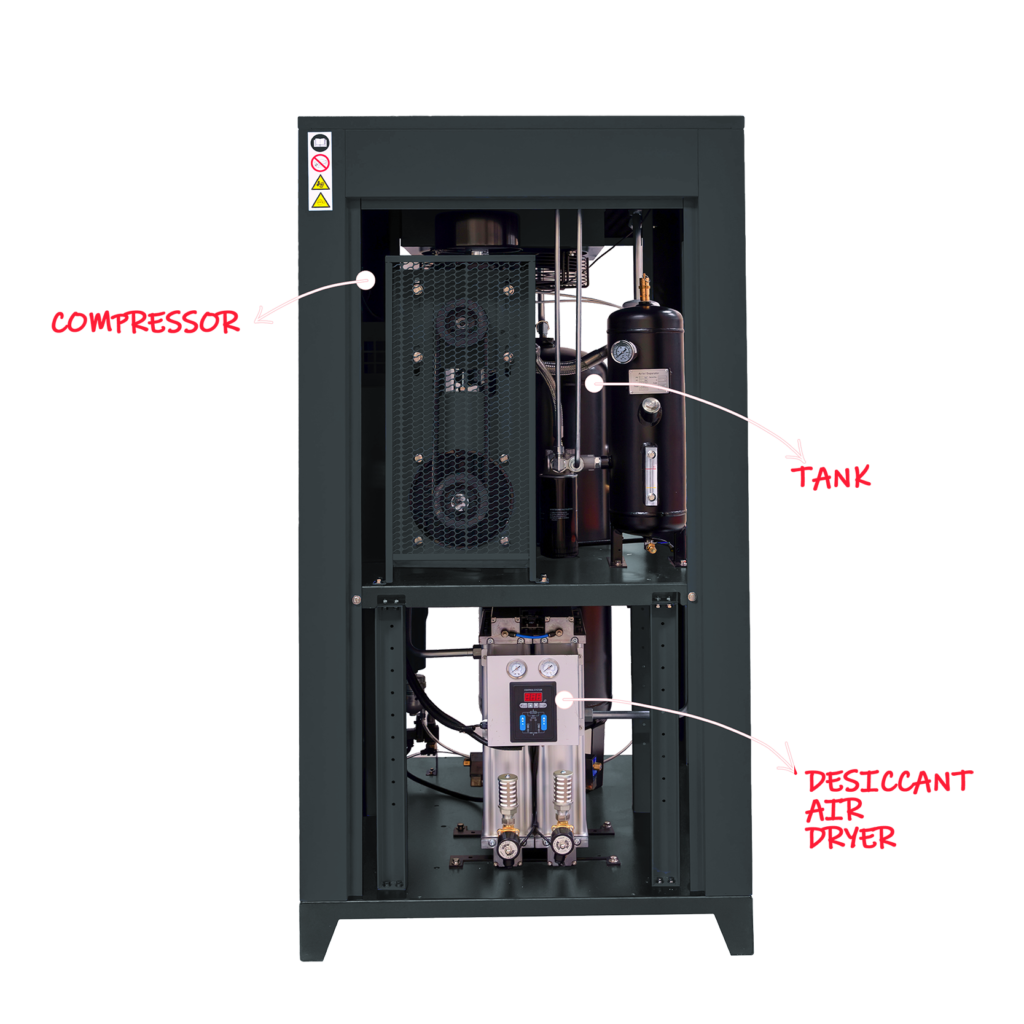

Compressed Air Centers‑with Modular Desiccant Air Dryer are designed for applications that demand ultra‑dry, high‑quality air, delivering a dew point as low as ‑40°F. Each integrated system includes a high‑efficiency rotary screw compressor, modular desiccant dryer, air receiver tank, pre‑ and post‑inline filtration, and automatic drains on the tank, filters, and dryer—factory‑built into one quiet, plug‑and‑play package. Requiring only a single power feed and one air outlet connection, these centers are easy to install and maintain. Offered in both fixed‑speed and VSD/VFD inverter configurations, they provide reliable, energy‑efficient performance wherever critical processes or instrumentation require exceptionally dry compressed air.
Fixed Speed -Desiccant Air Dryer (-40F Dp)
| Model | FAD @ 100 PSI (CFM) | FAD @ 150 PSI (CFM) | FAD @ 200 PSI (CFM) | Motor (HP) | Voltages Available | Tank (Gallon) | Length (in) | Width (in) | Height (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| ACC5TD/X | 21 | 17 | 11 | 5 |
208-230V 1Ph 480V 1Ph 600V 1Ph |
26 | 33½ | 37½ | 61 | 627 |
| ACC7TD/X | 25 | 21 | 17 | 7 | 26 | 33½ | 37½ | 61 | 645 | |
| ACC10TD/X | 43 | 35 | 21 | 10 | 26 | 33½ | 37½ | 61 | 660 | |
| ACC15TD/X | 61 | 50 | 36 | 15 | 26 | 37½ | 42½ | 71½ | 818 | |
| ACC20TD/X | 86 | 71 | 57 | 20 | 26 | 37½ | 42½ | 71½ | 858 | |
| ACC25TD/X | 111 | 96 | 79 | 25 | 72 | 56¾ | 39½ | 86½ | 1287 | |
| ACC30TD/X | 129 | 114 | 96 | 30 | 72 | 56¾ | 39½ | 86½ | 1353 |
Variable Speed VFD/VSD -Desiccant Air Dryer (-40F Dp)
| Model | FAD @ 100 PSI (CFM) | FAD @ 150 PSI (CFM) | FAD @ 200 PSI (CFM) | Motor (HP) | Voltages Available | Tank (Gallon) | Length (in) | Width (in) | Height (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| ACC5TD/D | 21 | 17 | 11 | 5 |
208-230V 1-3Ph 480V 3Ph 600V 3Ph |
26 | 33½ | 37½ | 61 | 627 |
| ACC7TD/D | 25 | 21 | 17 | 7 | 26 | 33½ | 37½ | 61 | 645 | |
| ACC10TD/D | 43 | 35 | 21 | 10 | 26 | 33½ | 37½ | 61 | 660 | |
| ACC15TD/D | 61 | 50 | 36 | 15 | 26 | 37½ | 42½ | 71½ | 818 | |
| ACC20TD/D | 86 | 71 | 57 | 20 | 26 | 37½ | 42½ | 71½ | 858 | |
| ACC25TD/D | 111 | 96 | 79 | 25 | 72 | 56¾ | 39½ | 86½ | 1287 | |
| ACC30TD/D | 129 | 114 | 96 | 30 | 72 | 56¾ | 39½ | 86½ | 1353 |
Reasons to Evaluate ACC Air Center
ACC integrated compressed air solution comprises a rotary screw compressor, refrigerated dryer, filters, and a storage tank, all designed to occupy minimal space.
This range of turnkey rotary screw compressors delivers exceptional efficiency and cost-effective performance while ensuring remarkably quiet compressed air production, treatment, and storage. The Air Centers feature a double-walled roto-molded polyethylene enclosure that effectively conceals a complete compressed air supply system. This compact yet comprehensive design allows businesses to seamlessly integrate a compressed air system within their operational framework.
It is an ideal solution for workshops and smaller production facilities with restricted space requirements that demand high air output. Originating from Kaeser™, our advancements have enhanced these compressor systems to provide exceptional ease of maintenance and long-lasting durability, ensuring years of reliable service. Ultimately, selecting an all-in-one air compressor represents an investment in a solution that guarantees optimal performance across your applications.
Modular Desiccant, Refrigerant Air Dryers, Air Tanks, Inline Filters, Auto Drains, Water Oil Separators…
